Search Table

Search Table

The Search Table window provides a quick way or building a simple search on a table. It can be invoked in one of the following ways:

or clicking on the Table Search icon Table Search.

The Table Search function operates slightly differently in these three cases:

Table used in the Search Table window

When the Search Table window is opened, it will display all the columns in your table.

When you open the window

AQT remembers the search conditions you specified the last time you used the window. If the table name hasn't changed, these remembered search conditions will be filled out on the window.

When you invoke Search Table from the Data Display window, the cell you have selected in the Data Display window will be set up in Search Table as a search condition. You can use this feature to search for a particular column value with a few clicks.

How the Search works

AQT allows you to enter 5 searches. Each search will return a set of rows. If you specify two searches, you will see all the rows which meet Search1 plus all the rows which meet Search2 (from an SQL point of view, the searches are ORed).

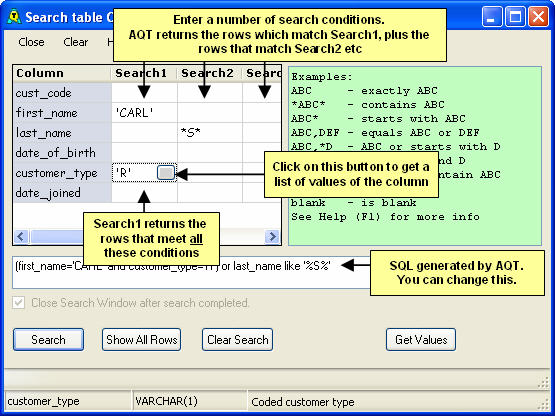

Each search consists of a set of conditions on columns in the table. The search will only display rows which meet all the specified conditions. In the example at the top of this topic, the search will find all customers whose first name is 'CARL' and with a customer_type of 'R', plus the customers who have an 'S' in their last_name.

Number of Searches

By default you can enter 5 searches. You can change this to a different number with Options > General > Number of searches on Search Table window.

Column Search Condition

The column search conditions that can be specified are as follows

Condition

What it does

Example

What matches

text

column exactly matches text

com

com

='text'

This is an alternate way of specifing a column match. Useful if the text contains a comma.

='com'

com

*text*

column contains text

*com*

command, sitcom

text*

column starts with text

com*

com, command

>value

Column is greater than value. Other operators that can be specified are <, <= and >=.

Value can be either a string value or a number.

>20

>y

21, 99, 4232

young, zoo

a to b

column is between a and b (this includes a and b). a and b can be string values or numbers.

1 to 7

j to q

1,2,3,4,5,6,7

jack, ken, peter

null

column is null





blank

column is blank. Same as =''





in (list of values)

column is one of the values

in (1,3,5)

1,3,5

Other things you can specify:

not

This selects all rows which do not meet the condition

date

Useful when comparing date values. date returns the current date

now

Useful when comparing timestamp values. Returns the current timestamp value

Multiple Column Search Conditions

You can specify multiple search condition by separating the conditions with a comma. The column meets these conditions if any of the conditions is met.

Example

What it does

ibm,*ca*

column is either equal to ibm or contains ca

=6,>20

column is equal to 6 or greater than 20

not 5 to 7

column is not between 5 and 7

Whether searches are case dependent

Whether the searches are case dependent depends on your database. Databases such as Oracle and DB2 are case dependent, whereas databases such as SQL Server, Sybase, Access are case independent.

Get Values

When you click on a cell, you get a Get Values button at the right end of the cell. Clicking on this will get the values of the column in the table. For a large table, this could take a while to process. The list of values appears in the grid on the right (as in the example at the top of this topic).

Clicking on a value will create a search condition of this value. You can select multiple values (using the Shift or Ctrl keys) - this will build an IN clause for the column.

The option Show "Get Values" buttons will control whether you see the Get Values buttons in the cells. If you de-select this, you can still get the values for a column by clicking on the Get Values button at the bottom of the window.

Show all rows

Clicking on this will show you all rows in the table (no search condition).

Clear Search

Clicking on this (or Ctrl-D) will clear the selected search. To clear all searches, select the menu item Clear > All Searches.

More Complex Searches

The Search Table function is designed as a simple window for building quick and simple searches. For building more complex searches you should use the Query Builder.
