Specifying properties of the Series

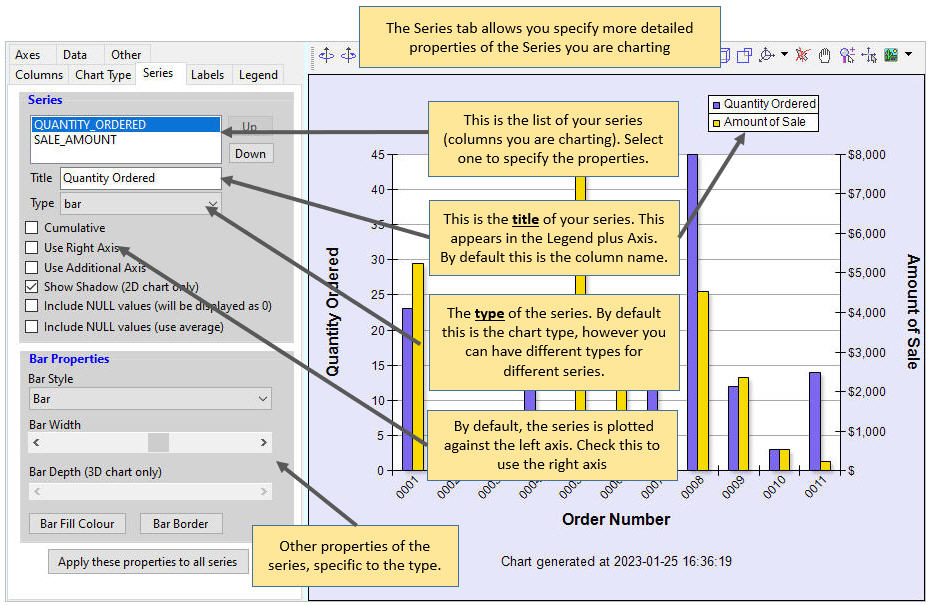

Use the Series tab to specify more detailed properties of the chart Series (columns you are charting).

Other Properties

Cumulative

See Cumulative Series.

Use Additional Axis

The standard chart has two axes:

• the Left Axis
• the Right Axis

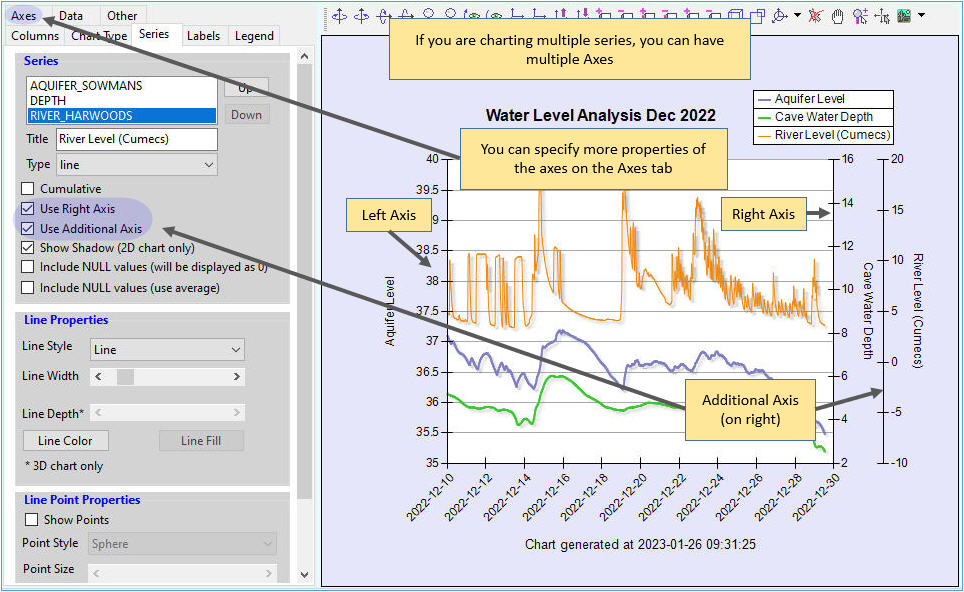

If you are charting more than two series, you can:

• chart the series against one of the left/right axes. This would be appropriate if the series contain data within a similar range of values
• chart the series against an axis specific for that series. You would do this by checking Use Addition Axis. By default, the axis will appear either to the left of the left axis. If Use Right Axis is also checked, the additional axis will be placed right of the right axis.

You can adjust the position and other properties of the Additional Axes on the Axes tab.
